Description:

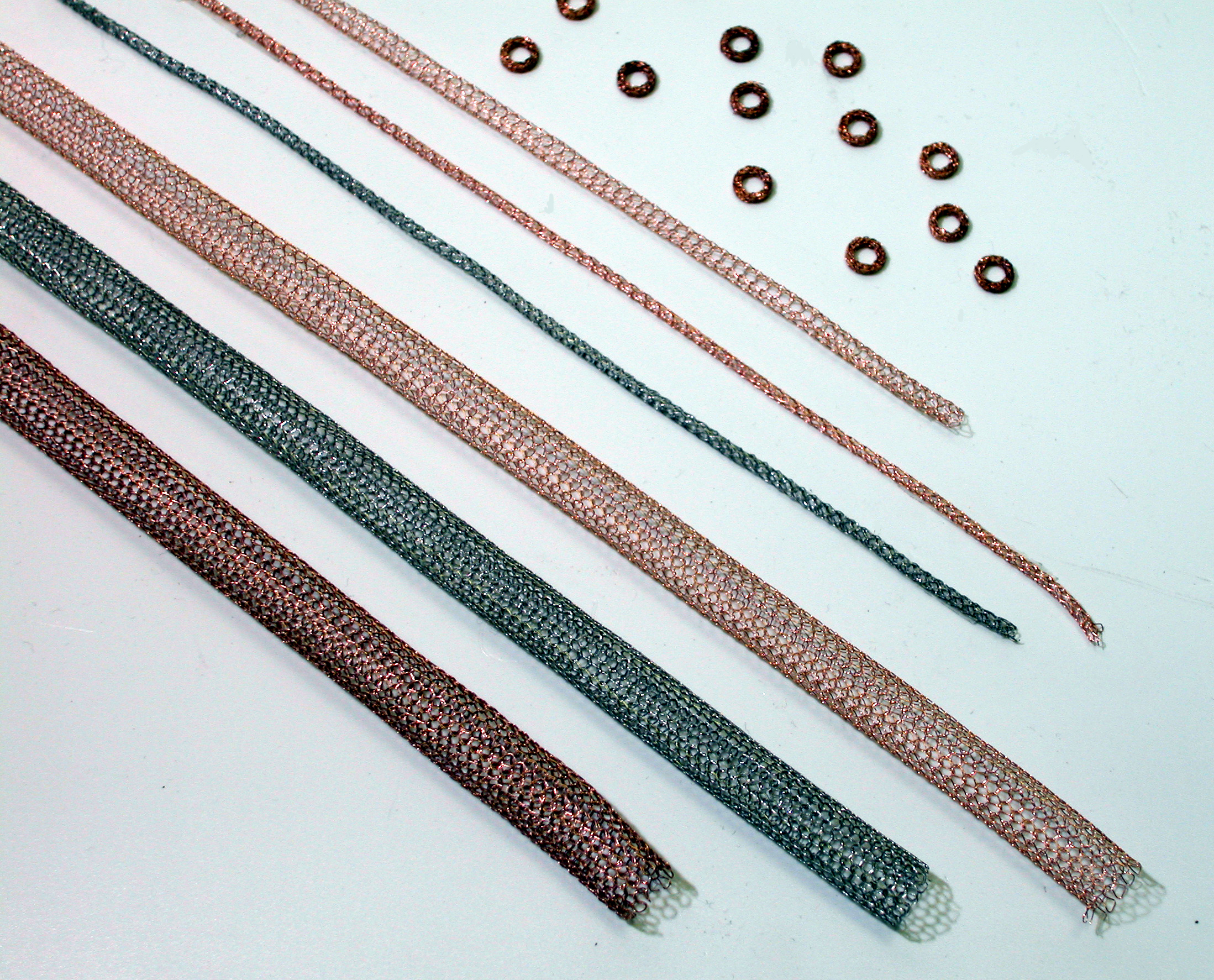

This very special product combining together the properties of a tubular mesh and an elastomer-based gasket. This product is formed into an hollow-round gasket with a unique technical process. Could be used as a shield for cables which can be directly inserted into the mesh or as a soft and elastic gasket to be placed into a groove. This product required a very low compression force and can recovery much of the original thickness after many compression cycles.

Characteristics:


- MINIMUM COMPRESSION FORCE AND HIGH RESILIENCY GASKETS

- OPTIMUM ATTENUATING PROPERTIES:

  Beryllium Copper -> E-field
  Tin Copper Clad Steel -> H-field

- 90% FREE HEIGHT RECOVERY AFTER DEFLECTION DURING OPERATIVE LIFE

- NO MOISTURE ABSORPTION

- SUPPLIED CONTINUOUS

- PRESSURE SENSITIVE ADHESIVE(as an option on D-section gaskets only)

RANGE OF WIRE MATERIALS:

  BERYLLIUM COPPER  (BC)
  STAINLESS STEEL  (SL)
  BERYLLIUM COPPER TIN PLATED  (BT)
  TINNED COPPER CLAD STEEL(*)  (TC)
  MONEL(*)  (MO)

  (*) Combined with BC, BT or SL material only
